Peripheral Embolisation System

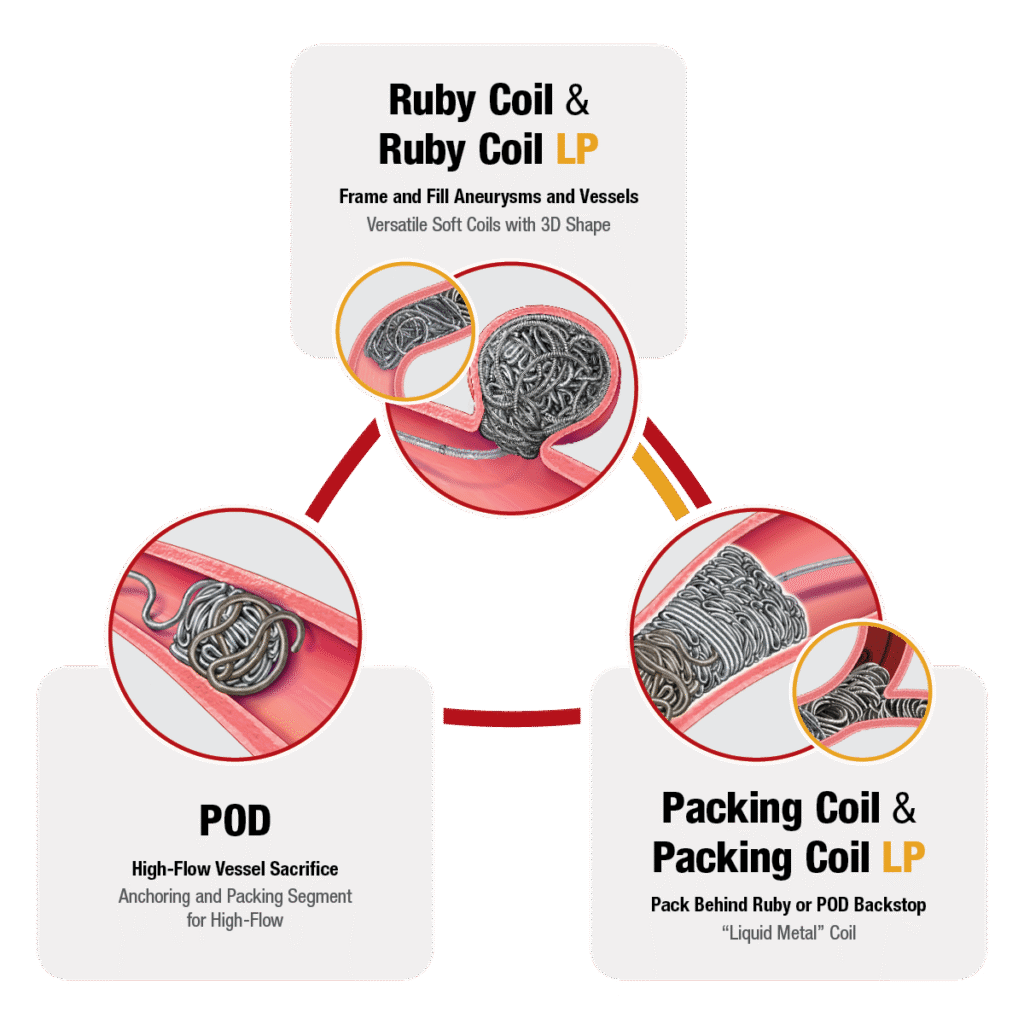

Consisting of Ruby^™ Coil, POD^™, Packing Coil, and LANTERN^™ High-Flow Microcatheter this system works in conjunction to help facilitate simplified and efficient embolisation procedures.

Ruby Coil

• Frame and Fill Aneurysms and Vessels
• Versatile Soft Coils with 3D Shape
• Large Volume System: 2 mm × 1 cm – 40 mm × 60 cm

Packing Coil

• Pack Behind Ruby or POD Backstop
• “Liquid Metal” Coil
• Large Volume System: 5 – 60 cm Lengths

POD

• High-Flow Vessel Sacrifice
• Anchoring & Packing Segment for High-Flow
• Large Volume System: 3 – 14 mm Devices

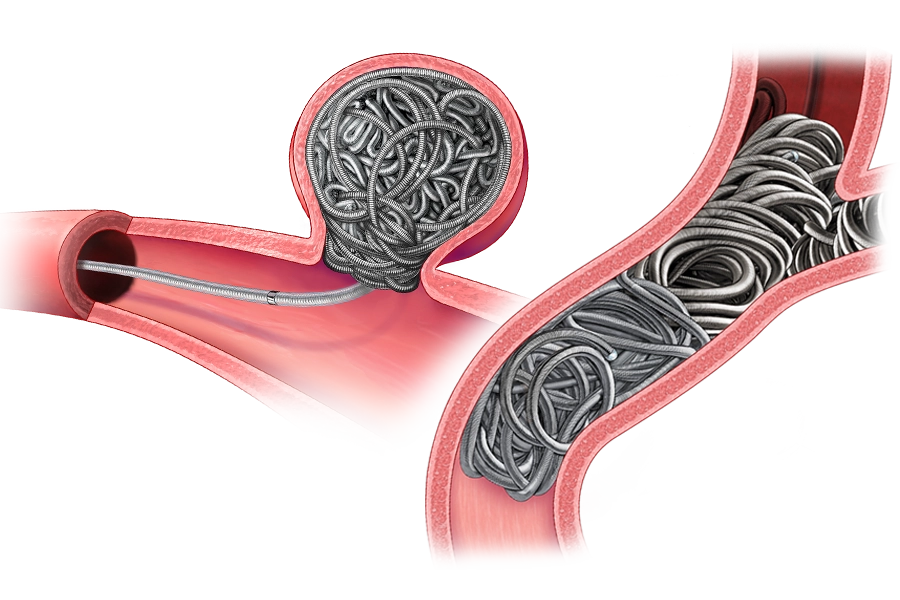

Renderings are for illustrative purposes only.

Individual results may vary depending on patient-specific attributes and other factors.

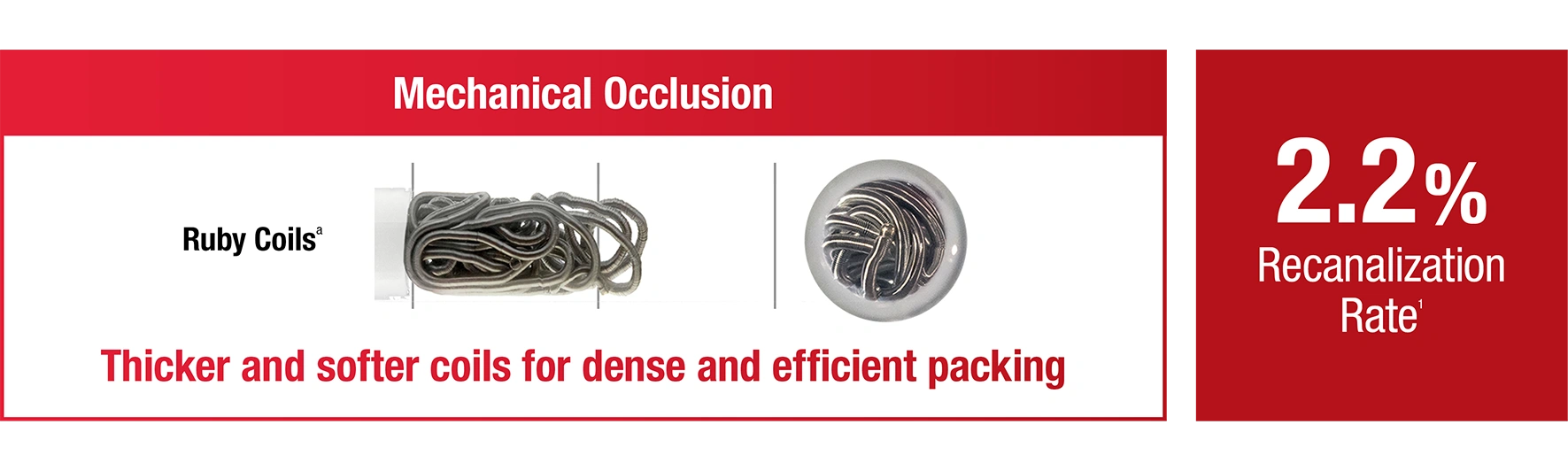

Penumbra coils^a are designed to be thicker and softer to densely pack, creating a mechanical occlusion with the potential for less reliance on thrombus formation. Penumbra coils have shown low rates of recanalisation of 2.2%¹

a. 30 cm Packing Coil delivered through Penumbra LANTERN High-Flow Microcatheter into 4 mm glass tube.

1. Vogler J, Gemender M, Samoilov D. Packing density and long-term occlusion after transcatheter vessel embolization with soft, bare-platinum detachable coils. Am J Interv Radiol. 2020;4(2). doi:10.25259/AJIR_31_2019.

Photographs taken by and on file at Penumbra, Inc. Tests performed at Penumbra, Inc. Bench test results may not be indicative of clinical performance. The clinical results presented herein are for information purposes only, and may not be predictive for all patients. Individual results may vary depending on patient-specific attributes and other factors.

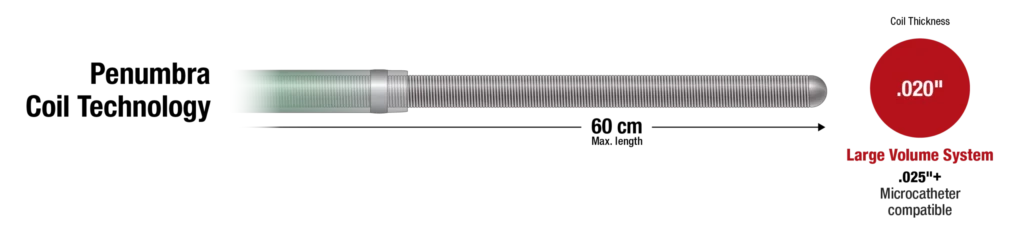

Penumbra’s large volume coils are the only coil system to provide 60 cm length and .020″ thickness^a

• Large Volume System
  • .025″ – .027″ Microcatheter Compatibility

a. As of October 2023.

Renderings for illustrative purposes only.
