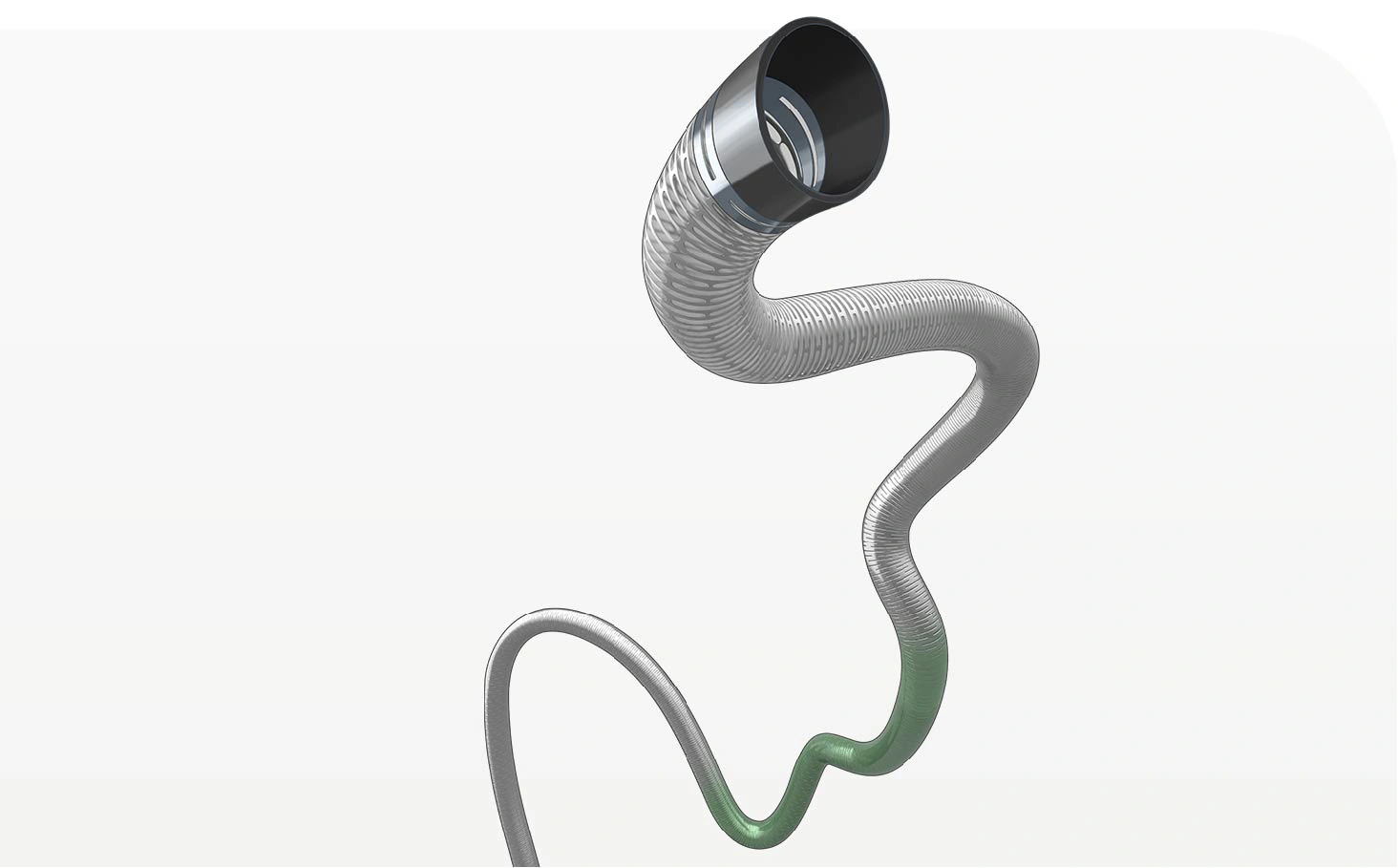

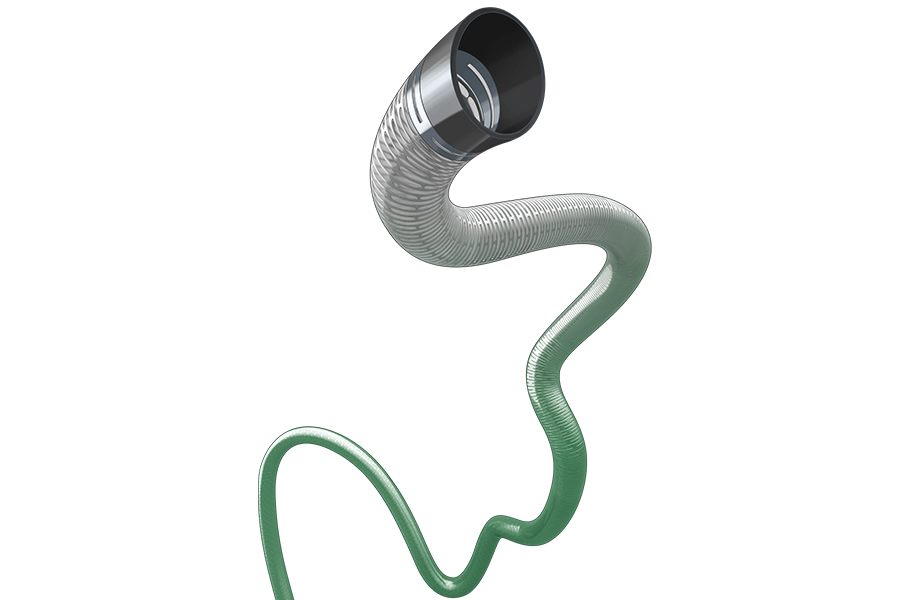

The BMX™81 Access System is designed for today’s most complex neurovascular interventions. It is a 7 F (2.46 mm) guide for both femoral and radial access. The advanced stainless steel hypotube technology of BMX81 provides distal deliverability and proximal stability for most complex therapies. Furthermore, the catheter’s .081″ (2.06 mm) lumen is designed to expand intraprocedural options and compatibility.
Compatible with Penumbra 5 F Select™ Catheter, designed for Rapid Primary Access to optimise delivery to final position, eliminating an over-the-wire exchange.
-
- 7 F OD (2.46 mm) delivery catheter
- .081″ ID (2.06 mm) designed to expand intraprocedural options and compatibility compared to 6 F Guide Catheters
- Soft, atraumatic tip design for distal placement
- Mechanically optimised proximal shaft designed to maximise procedural stability
- Compatible with Penumbra 5 F Select Catheter for Rapid Primary Access to optimise delivery to final position, eliminating an over-the-wire exchange
- Packaged with a radiopaque dilator designed to provide seamless dilator-to-catheter transition (.038” guidewire compatible)
- Tip Shapes: Straight, MP
- Lengths: 95 cm, 105 cm, 115 cm
5 F Select Catheters
- Allows for easy selection off arch into desired vessel
- Designed to facilitate atraumatic placement into distal vasculature
- Can be used for diagnostic angiogram – .040” (1.02 mm) lumen
- Compatible with all .035” – .038” (.89 mm-.97 mm) guidewires
- Tip Shapes: BER, H1, SIM
- Lengths: 120 cm, 130 cm
