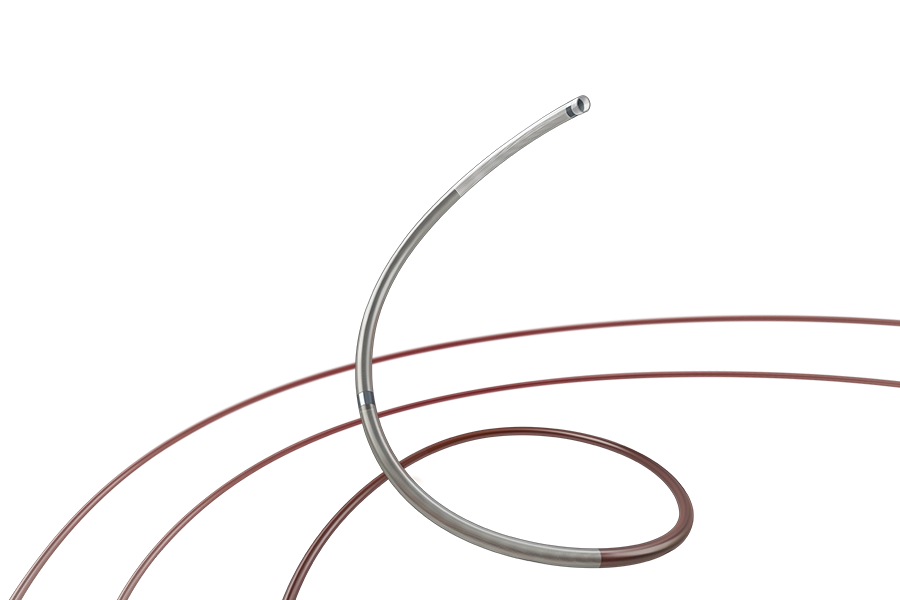

The ACCESS25 Delivery Microcatheter is designed for support, trackability, and atraumatic placement for delivery of Penumbra’s .020″ coils (PC400™, POD400™ & PAC400™). ACCESS25 features a highly flexible distal zone optimized with REDglide™ technology engineered for improved navigability amidst tortuosity and a nitinol coil wind engineered for a progressive transition from proximal support to distal flexibility. Advanced polymers facilitate distal deliverability and reinforce the proximal support zone to resist back-out and help promote distal-to-proximal energy transfer and pushability.
-
- .025″ Lumen (0.63 mm): Designed to deliver Penumbra’s .020″ coil platform (PC400, POD400, PAC400)
- .037″ Distal OD – .040″ Proximal OD (.094 mm – 1.01 mm): Designed with evolved polymer and nitinol coil wind construction to optimize deliverability
- Soft Precision: Short, atraumatic polymer tip with radiopaque markerband optimizes device positioning
- Highly Flexible Distal Zone: Reinforced with nitinol coil wind to facilitate trackability amidst tortuosity
- 90 cm of REDglide Coating: Enhanced hydrophilic coating on distal shaft to facilitate ease of deliverability in tortuous vasculature
- Optimized Midsection: Advanced polymers engineered for progressive transition from proximal support to distal flexibility
- Tactile Support: Designed to resist back-out during deployment as well as to promote distal-to-proximal energy transfer and pushability
- Tip Shapes: Straight, 45º, 90º, 130º
- Length: 150 cm
Product Gallery

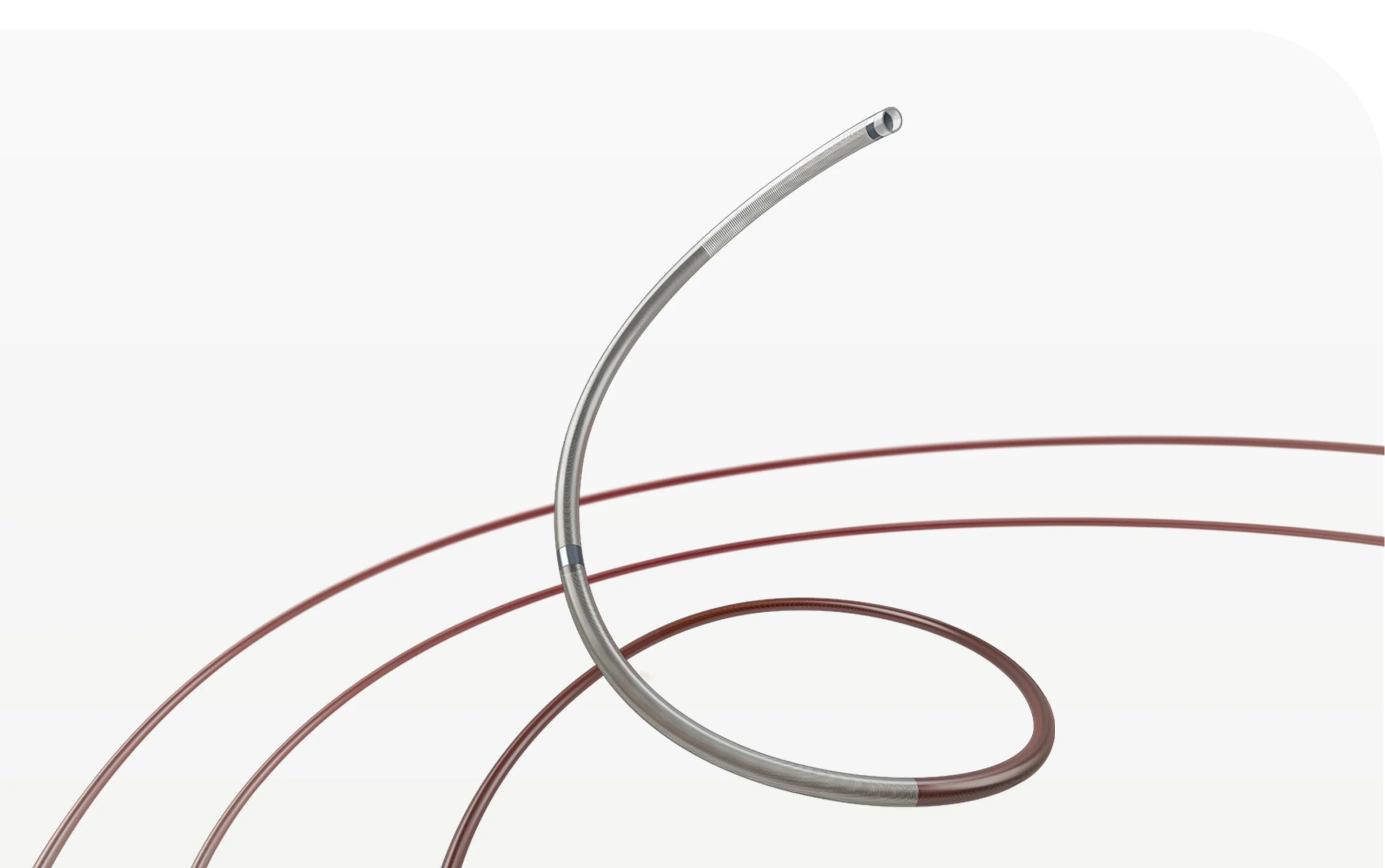

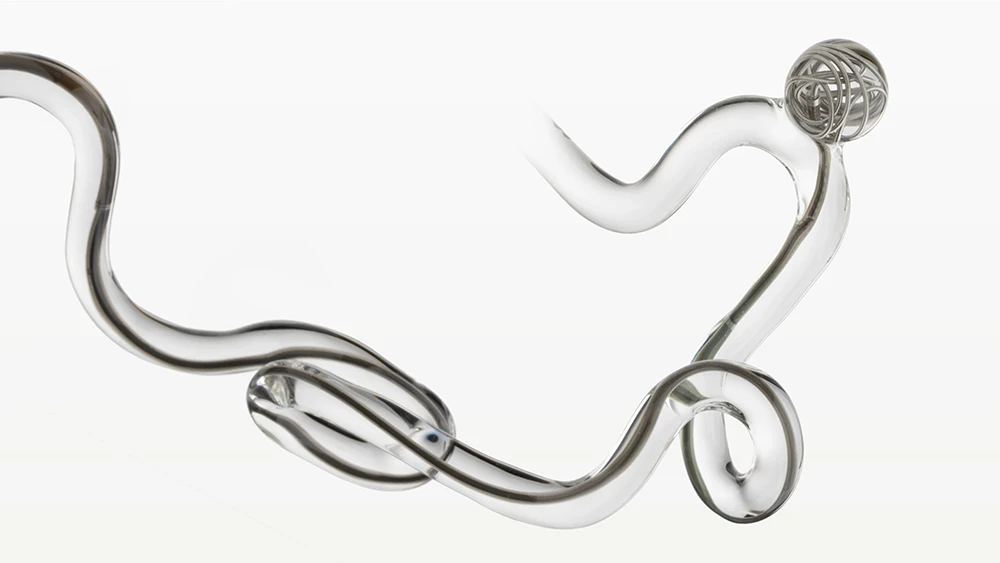

ACCESS25 is designed to optimize the delivery of .020” Penumbra Coil systems

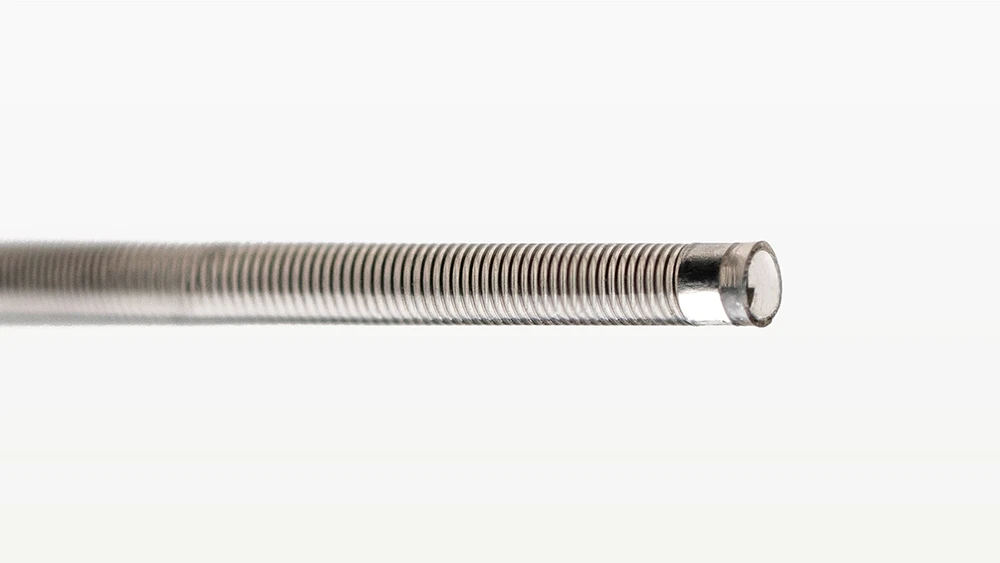

Short, atraumatic polymer tip with radiopaque markerband

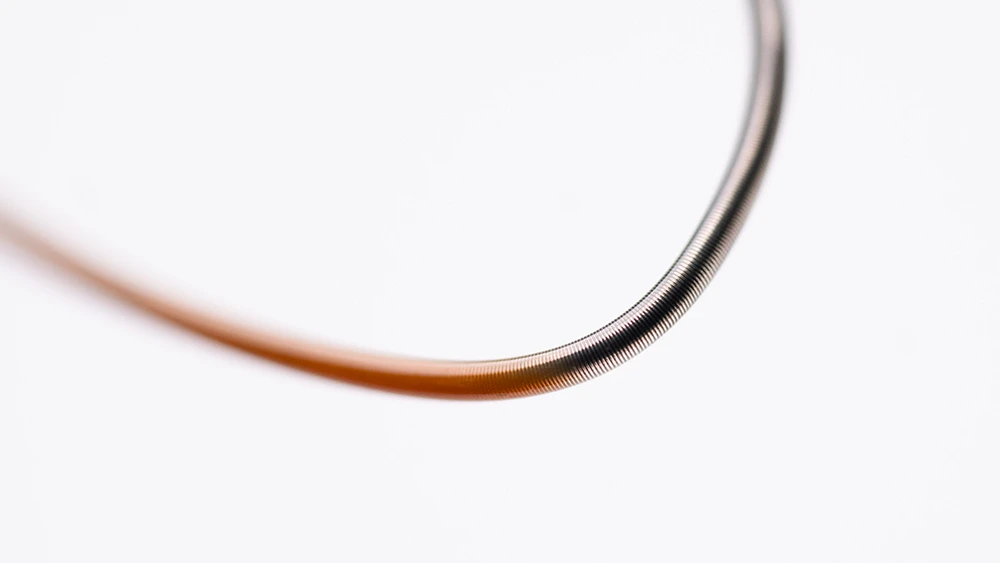

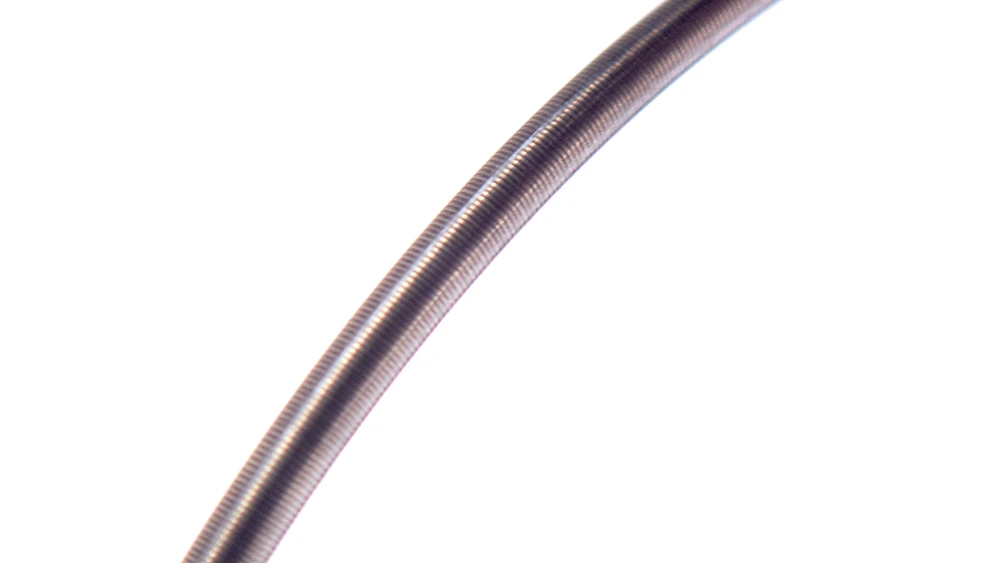

Soft, highly flexible distal zone reinforced with nitinol coil wind

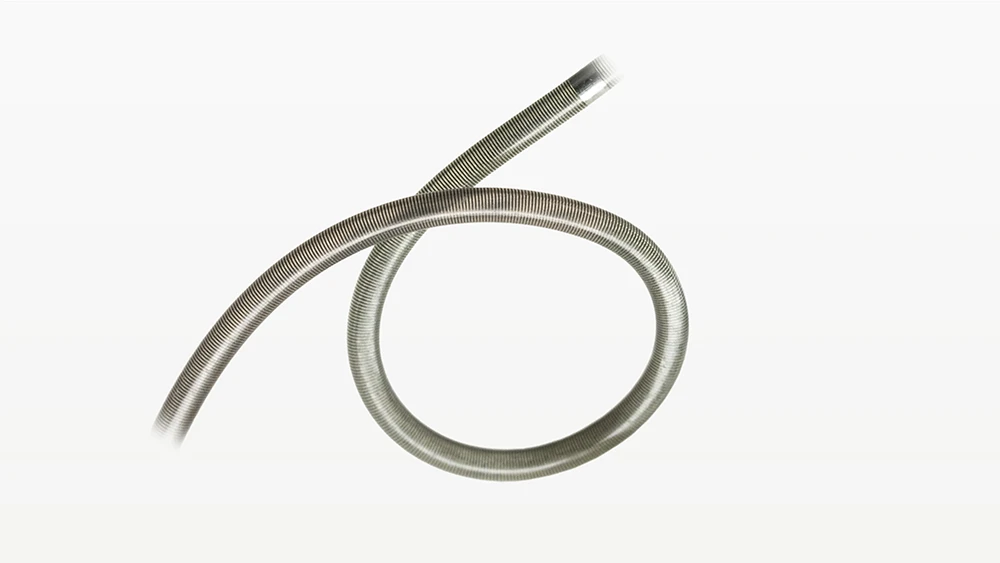

Advanced polymers engineered to progress from proximal support to distal flexibility
Designed to resist back-out during deployment and promote proximal-to-distal energy transfer
Please refer to Penumbra's image license for use of materials
Related Cases
ACCESS25 tracking to ACOM, aneurysm access, coil deployment, and post
ACCESS25 tracking to ACOM, aneurysm access, coil deployment, and post
ACCESS25 tracking to ACOM, aneurysm access, coil deployment, and post
ACCESS25 tracking to ACOM, aneurysm access, coil deployment, and post
Unruptured 2 cm ACOM Aneurysm
Access Setup: BENCHMARK 071, MIDWAY 43 125 cm, ACCESS25 Straight-tip, .014″ wire
Total coils: 10
Final packing density: 15.5%
Total length of PC400 coils: 320 cm
Equivalent total length of .014″ coils: 640 cm
Dr. Arthur Wang
East Jefferson General Hospital, LA
ICA PAC deployment, ECA POD deployment, post
ICA PAC deployment, ECA POD deployment, post
ICA PAC deployment, ECA POD deployment, post
Left ICA and ECA Sacrifice
Access Setup: .087″ guide catheter, ACCESS25 Straight-tip, .024″ wire
Total coils: 17 (2 POD400 coils, 14 PAC400 coils, 1 PC400 Complex coil)
Total length of coils: 877 cm
Equivalent total length of .014″ coils: 1754 cm
Dr. Zachary Wilseck
University of Michigan Hospital, MI
Images used with permission and provided for illustrative purposes only. Procedural techniques and decisions based on physician’s medical judgment. Individual results may vary. Consents on file at Penumbra, Inc.
